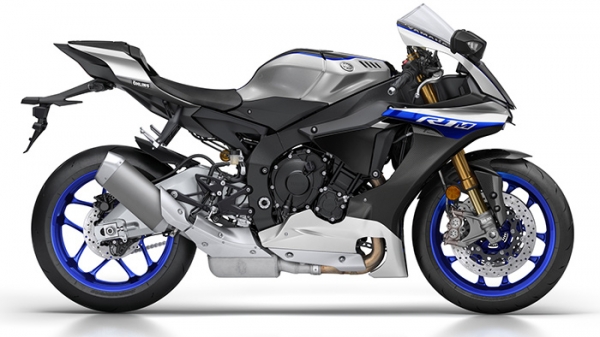

YZF-R1M

Yamaha YZF-R1M. We R1
The YZF-R1M race motorcycle is a special version of the R1, and comes with even higher factory specification – enabling every racer and track rider to discover their true potential.
A 6-axis Inertial Measurement Unit (IMU) offers controlability over traction, slides, front wheel lift, braking and launches. Its Communication Control Unit with GPS allows to look at lap times and other running data on a tablet – and R1M’s Electronic Racing Suspension (ERS) delivers ultimate handling
With its 200PS crossplane engine, short wheelbase chassis, 3D control electronics and exclusive carbon bodywork, R1M brings M1-derived factory-bike technology to private owners.

   DETAILS

•  Öhlins Electronic Racing Suspension (ERS)
•  Communication Control Unit with wireless remapping
•  M1 style carbon bodywork / 200kg wet-180kg dry
•  998cc 200PS crossplane 4-cylinder engine
•  6-axis IMU with Gyro/G sensors for 3D motion data
•  Banking sensitive Traction Control / Slide Control
•  Lift Control / Launch Control / wide 200 rear tyre
•  Banking sensitive ABS / Unified Brake System
•  Short wheelbase aluminium Deltabox frame
•  Upward truss type swingarm / magnesium rear frame
•  Limited availability
•  Exclusive Yamaha Racing Experience for R1M owners

    YZF-R1M   Specifications   Engine   Engine type liquid-cooled, 4-stroke, DOHC, forward-inclined parallel 4-cylinder, 4-valves Displacement 998cc Bore x stroke 79.0 mm x 50.9 mm Compression ratio 13.0 : 1 Maximum power 147.1 kW (200.0PS) @ 13,500 rpm Limited power version N/A Maximum Torque 112.4 Nm (11.5 kg-m) @ 11,500 rpm Lubrication system Wet sump Clutch Type Wet, Multiple Disc Carburettor Fuel Injection Ignition system TCI (digital) Starter system Electric Transmission system Constant Mesh, 6-speed Final transmission Chain Fuel consumption 7.2 l/100km CO2 emission 168 g/km     Chassis   Frame Aluminium Deltabox Front suspension system Telescopic forks, Ø 43 mm Front travel 120 mm Caster Angle 24º Trail 102 mm Rear suspension system Swingarm, (link suspension) Rear Travel 120 mm Front brake Hydraulic dual disc, Ø 320 mm Rear brake Hydraulic single disc, Ø 220 mm Front tyre 120/70 ZR17M/C (58W) Rear tyre 200/55 ZR17M/C (78W)     Dimensions   Overall length 2,055 mm Overall width 690 mm Overall height 1,150 mm Seat height 860 mm Wheel base 1,405 mm Minimum ground clearance 130 mm Wet weight (including full oil and fuel tank) 200 kg Fuel tank capacity 17 litres Oil tank capacity 3.9 litres
