DETAILS
• Fully adjustable Öhlins electronic suspension
• Exclusive blue/silver colour scheme
• Exclusive full colour TFT meter panel
• Torque-rich 4-cylinder ‘CP4’ crossplane engine
• YZF-R1-derived engine and chassis technology
• Strong and linear low to mid range torque
• YCC-T, D-MODE and Traction Control System (TCS)
• A&S clutch and Quick Shifter System (QSS)
• Ultra-short wheelbase aluminium Deltabox chassis
• Dynamic mass-forward silhouette
• Upright riding position with forward lean
• High specification brakes with radial front calipe

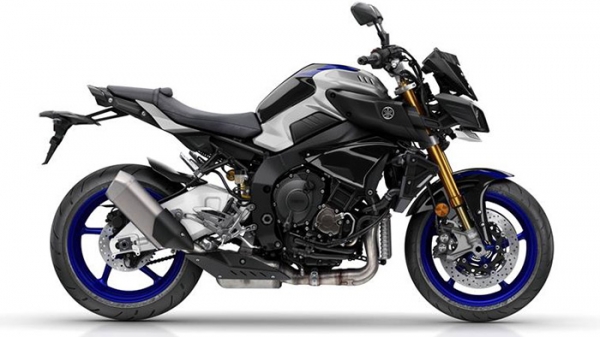

MT-10 SP
Specifications
Engine
Engine type
liquid-cooled, 4-stroke, DOHC, 4-valves
Displacement
998cc
Bore x stroke
79.0 mm x 50.9 mm
Compression ratio
12 : 1
Maximum power
118.0 kW (160.4PS) @ 11,500 rpm
Limited power version
N/A
Maximum Torque
111.0 Nm (11.3 kg-m) @ 9,000 rpm
Lubrication system
Wet sump
Clutch Type
Wet, Multiple Disc
Carburettor
Fuel Injection
Ignition system
TCI
Starter system
Electric
Transmission system
Constant Mesh, 6-speed
Final transmission
Chain
Fuel consumption
8.0 l/100km
CO2 emission
185 g/km
Chassis
Frame
Aluminium Deltabox
Front suspension system
Telescopic forks, Ø 43 mm
Front travel
120 mm
Caster Angle
24º
Trail
102 mm
Rear suspension system
Swingarm, (link suspension)
Rear Travel
120 mm
Front brake
Hydraulic dual disc, Ø 320 mm
Rear brake
Hydraulic single disc, Ø 220 mm
Front tyre
120/70 ZR17 M/C (58W)
Rear tyre
190/55 ZR17 M/C (75W)
Dimensions
Overall length
2,095 mm
Overall width
800 mm
Overall height
1,110 mm
Seat height
825 mm
Wheel base
1,400 mm
Minimum ground clearance
130 mm
Wet weight (including full oil and fuel tank)
210 kg
Fuel tank capacity
17 litres
Oil tank capacity
3.9 litres
